Name: 120mm Low Voltage Copper Armored Electrical Power Cable with Xlpe Insulation Material
Brand: Zhufeng
Price: 20.12 USD

Place of Origin : Hebei, China

Brand Name : Zhufeng

Model Number : YJV22

Insulation Material : Xlpe

Type : High Voltage

Application : Overhead, Heating, Underground

Conductor Material : Copper

Jacket : PVC

Material Shape : Round Wire

Range of Application : Refractory

Specification : 35/50/70/95/120/150/185/240/300/400mm²

Voltage : 8.7/10KV,26/35KV

Color : Black or customized

Certification : ISO9001, CE, CCC, RoHS

MOQ : 500 meters

Price : $20.12/meters 500-4999 meters

Contact Now

Product Description

Type			Name	Main Application
Cu Core	Al Core		Name	Main Application
YJV YJY	YJLV YJLY	XLPE insulated, PVC or PE Sheathed Power Cable	For laying indoor and outdoor, unable to bear extenal mechanical force but the tractive force during laying.Laying single core cable in magnetic duct is not permissible.
YJV22 YJV23	YJLV22 YJLV23	XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable	For laying underground, able to bear external mechanical force, but unable to bear large pulling force.
YJV32 YJV33	YJLV32 YJLV33	XLPE Insulated, Steel Wire Armored, PVC or PE Sheathed Power Cable	For laying underground along route with different level, able to bear external mechanical force and moderate pulling force.
YJV42 YJV43	YJLV42 YJLV43	XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable

Specification

Product name	Copper conductor XLPE insulated PVC sheathed power cable	Insulation	XLPE/PVC
Model	YJV22	Temperature	90°C
Rated voltage	26/35KV	Standard	GB/T12706.2-2008/IEC60502-2:2005
Specification	50-800mm²	Sheath	PVC
Core number	1/3 Core	Application	For laying indoor and outdoor, unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble.
Conductor	Copper	Armour	STA (optional)

Other productions

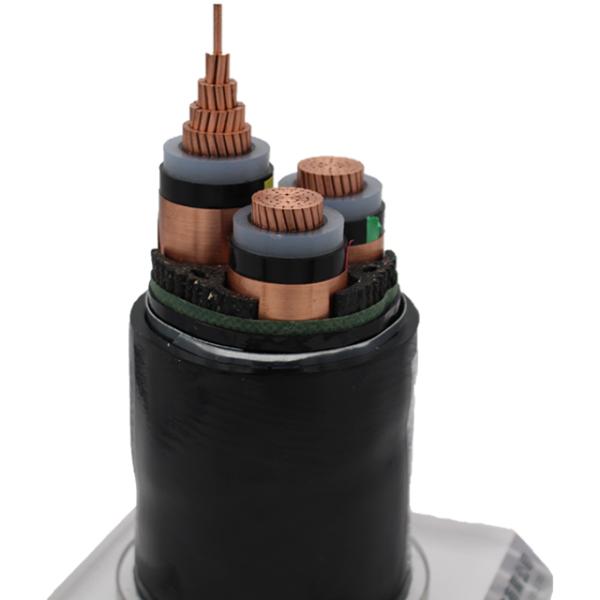

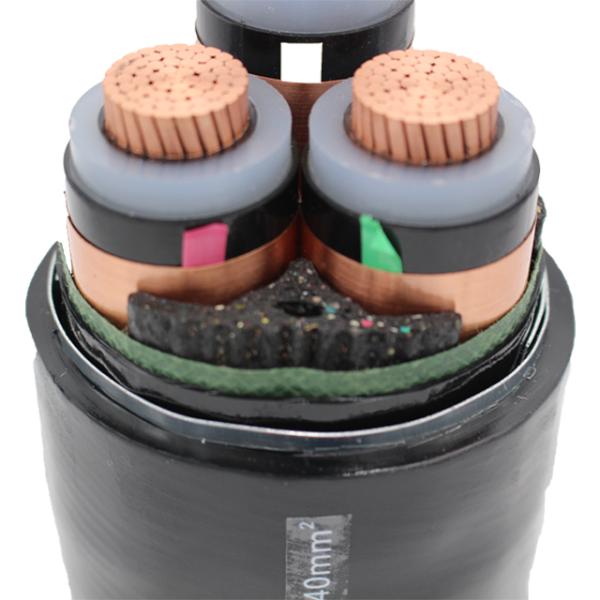

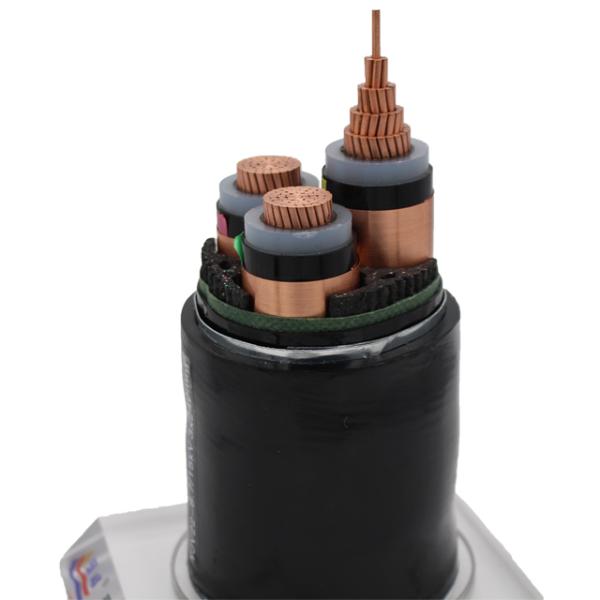

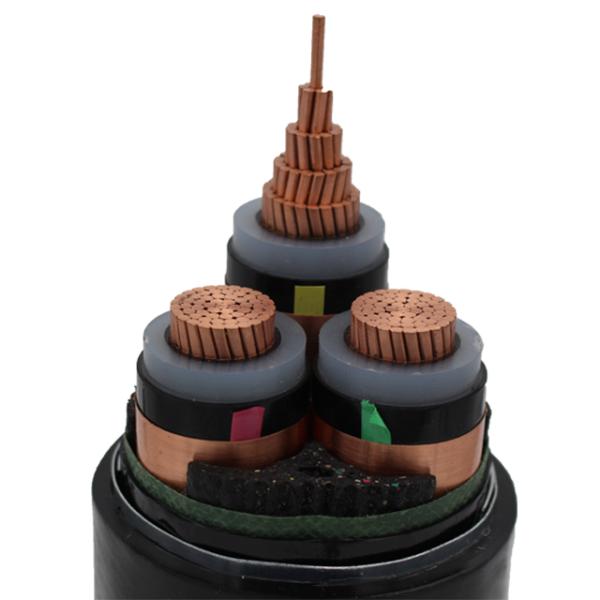

120mm Low Voltage Copper Armored Electrical Power Cable with Xlpe Insulation Material Images
