Single 1.5mm 2.5mm 4mm 6mm Stranded Copper Conductor Flexible PVC Insulation Wire

Name: Single 15mm 25mm 4mm 6mm Stranded Copper Conductor Flexible PVC Insulation Wire
Brand: ZHUFENG
Price: 0.15 USD

Wholesale Single 1.5mm 2.5mm 4mm 6mm Stranded Copper Conductor Flexible PVC Insulation Wire from china suppliers

Place of Origin : Hebei, China

Brand Name : ZHUFENG

Model Number : ZR-BVR

Type : insulated

Application : Housing, Interior decoration, housing wiring, light industrial wiring

Conductor Material : Copper

Conductor Type : Stranded

Insulation Material : PVC

Rated voltage : 450/750v

Product name : Flexible Copper core PVC insulated PVC sheathed wire

Number of cores : 1

Specification : 1.5-70mm²

Standard : JB/T 8734.2

Certification : ISO,CCC,CE,RoHS

MOQ : 1000 meters

Price : $0.15/meters >=1000 meters

Contact Now

Product Description

Single 1.5mm 2.5mm 4mm 6mm Stranded Copper Conductor Flexible PVC Insulation Wire

BVR cable wire characteristics

The product is suitable for fixed installation of power plant with rated AC voltage up to and including 450/750V. Such as home decoration lighting. Fixed wiring can be used for indoor open coating, pipe piercing and other occasions. In order to facilitate the difference in the installation process, it can be divided into seven colors: red, yellow, blue, green, black, white and double. As BVR is soft structure, its application scope is mostly in soft environment.

Differences between BV and BVR

The only difference between BVR wire and BV wire is that the diameter of the R wire conductor is soft copper wire. That is, increase the number of conductors and reduce the diameter of a single conductor. The diameter of a single conductor is less than 1mm.

In this way, BVR wire is very soft, laying Angle requirements are greatly reduced than BV wire, threading pipe, groove more convenient, fast, reduce the working intensity while greatly improving the work efficiency. By the majority of electricians and architectural decoration personnel like!

Specification

Product name	Copper conductor insulated PVC sheathed flexible cable	Insulation	PVC
Model	BVR	Temperature	70°C
Rated voltage	450/750V	Standard	JB8734-2012/GB5023-2008
Specification	1-70mm²	Sheath	PVC
Application	It is commonly used for open wiring, electrical equipment and building indoor wiring	Conductor	copper

Other productions

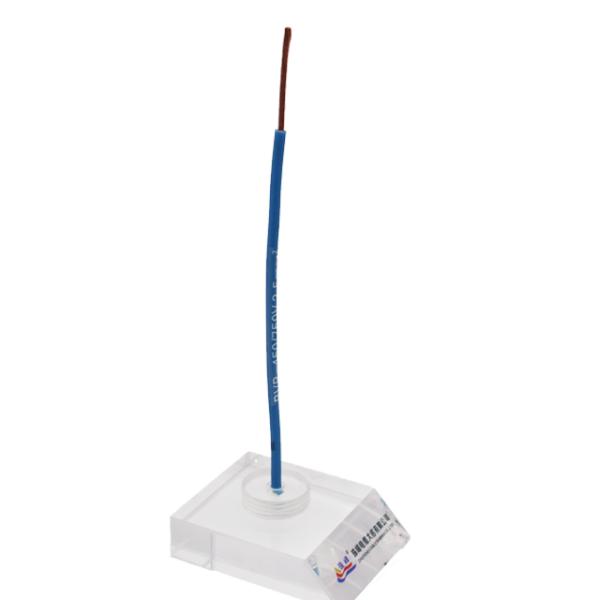

Single 1.5mm 2.5mm 4mm 6mm Stranded Copper Conductor Flexible PVC Insulation Wire Images
