2 Core 0.75mm 1mm 1.5mm 2.5mm Fire Alarm System Cables Copper Core PVC Twisted Pair Flexible Cable

Name: 2 Core 075mm 1mm 15mm 25mm Fire Alarm System Cables Copper Core PVC Twisted Pair Flexible Cable
Brand: ZHUFENG
Price: 0.87 USD

Wholesale 2 Core 0.75mm 1mm 1.5mm 2.5mm Fire Alarm System Cables Copper Core PVC Twisted Pair Flexible Cable from china suppliers

Place of Origin : Hebei, China

Brand Name : ZHUFENG

Model Number : RVS

Conductor Material : Copper

Insulation Material : PVC

Jacket : PVC

Number of Conductors : 2

Application : Fire alarm system, Household appliances

Color : Red Black Blue White Yellow

Rated Voltage : 300V/500V

Keywords : Twisted Pair Flexible Cable

Certification : ISO9001 ISO14001 CE CCC RoHS

Core size : 0.75/ 1/ 1.5/ 2.5 square mm

Sample : Provided

MOQ : 1000 meters

Price : $0.87/meters >=1000 meters

Contact Now

Product Description

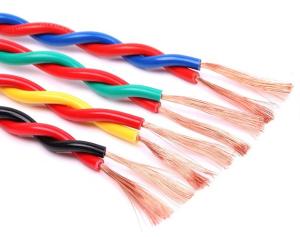

2 Core 0.75mm 1mm 1.5mm 2.5mm Fire Alarm System Cables Copper Core PVC Twisted Pair Flexible Cable

RVS cable wire characteristics

RVS wire is a relatively common cable type, mainly seen in the application of software electrode connection in fire safety system.

Its full name is copper core polyethylene insulation layer twisted cable for connection. Because of its appearance, it is often commonly known as twisted-pair cable.

RVS is ordinary to wring more flexible wire, according to user requirements can provide flame retardant twisted-pair and refractory twisted-pair cable.

ZR-RVS copper core PVC insulated twisted flame retardant flexible wire, can be used for flame retardant occasions; NH-RVS copper core PVC insulated twisted refractory flexible wire, can be used for fire resistance requirements; WDZ-RVS copper core PVC insulated twisted low smoke halogen free soft wire, can be used for occasions requiring low smoke and low halogen.

Color: red yellow, red blue, red black, red green, red white, black and white, red green.

Advantages: high performance, good softness, high conductivity, low resistance, practical, durable.

Specification

Product name	Copper conductor PVC insulated twisted type connection flexible wire	Insulation	PVC
Model	RVS	Temperature	70°C
Rated voltage	300V	Standard	JB/T 8734.3-2016
Specification	0.75/1/1.5/2.5mm²	Sheath	PVC
Core number	2/3 core	Sheath color	multi color
Application	Fire automatic fire alarm system detector lines, household appliances, small power tools, instruments and instruments and power lighting lines, connecting power amplifier and sound equipment, broadcast system transmission amplifier amplification processingof audio signals，etc.	Conductor	high quality Oxygen-free copper

Pure Oxygen-Free Copper Conductor to Ensure Conductivity.

Environmentally-Friendly PVC Material with Excellent Insulation Performance, Scratch Resistance, Abrasion Resistance, Great Toughness.
